Trend-setting measurement technology software

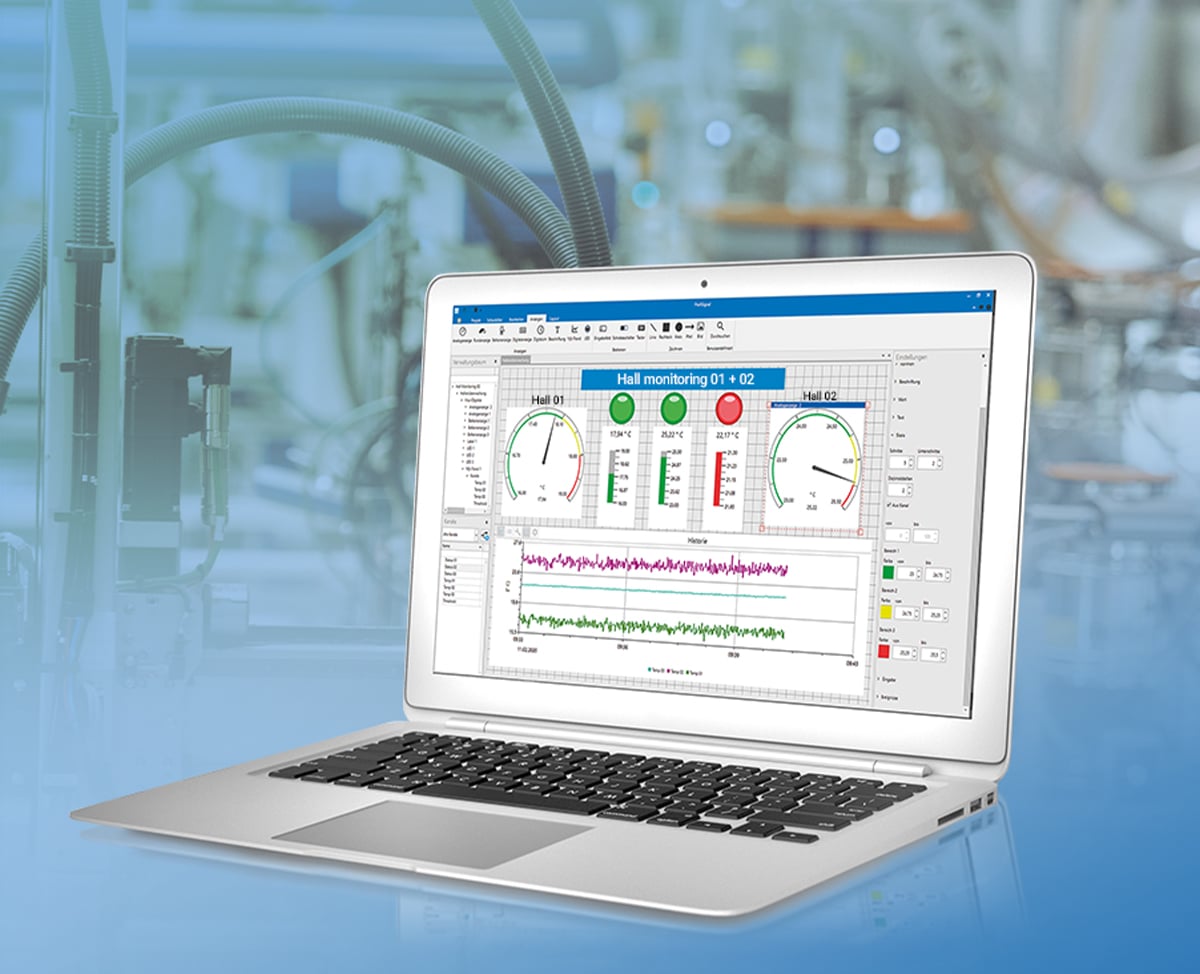

ProfiSignal 20 is the modern complete software for applications in the field of measurement data acquisition and analysis, visualisation and process control. With ProfiSignal 20 you can now visualise and analyse your measurement data platform-independently and monitor and control your processes without effort.
You can use the measurement software on the desktop PC in your office or on the measurement computer in the control center. Due to its future-oriented platform independence, ProfiSignal 20 can also be used on tablets and smartphones.
ProfiSignal 20 is modular, scalable and available in two versions:
ProfiSignal 20 Go
The software takes you from measurement data to detailed graphical portrayals in just a few clicks.
More information
ProfiSignal 20 Basic
With the software you create sophisticated and detailed visualisations of installations and processes while also enabling easy process control.
More informationNew functions
A basic function of ProfiSignal 20 is the display of measurement data in various, highly configurable diagram types.
With the new version, you can now use selected Highlight curves in diagramsto emphasize them in the presentation.
For mobile devices, the new version includes a tabular project list implemented. This provides a better overview of the available projects when space is limited (see illustration above).
In diagrams in ProfiSignal 20, the following can now be displayed for selectable ranges Statistical evaluations (not shown)
New Visualization and operating objects for ProfiSignal 20 Basic
By means of the Checkbox you can switch the functions in your application on or off.
With the Digital clock it is possible to integrate the display of the current time into your dashboard.
With the Slider you can set or adjust any control variables in your application.
The Text input field has been expanded to include helpful functions for formatting the text. Tabs and text breaks can now be used with the new version (above image).
Product highlights
- Fully platform independent - optimised for desktop PCs, laptops, tablets and smartphones
- Graphical portrayals for a wide range of applications
- Powerful measurement data portrayals with instant and smooth transition between live and historical data
- SCACH function - one scan is sufficient to open the machine and plant-specific measurement data and visualisations
- Windows, Android and IOS operating system support
- Modern interfaces and operating designs - adapted to the look and feel of the relevant platform
- Beginner and expert modes to match individual needs
Perfect operation on all levels
ProfiSignal 20 maps the structures completely. From the production hall overview to each individual machine or plant. From the test laboratory to the respective test stand. It could not be easier or more transparent. If you use your mobile devices, no matter where you are, with ProfSignal 20 you can check the current operating parameters of individual plant sections or machines.
The highlight of ProfiSignal 20 is its complete platform independence - the same project is available on any end devices, each optimized with regard to the display and operating concept of the respective platform. No matter where and how you want to access your processes - ProfiSignal 20 offers the optimal solution for all applications.
Thanks to the new SCACH function, you only need to scan an individual QR code attached to each machine with the camera of your smartphone or tablet, and a single measurement diagram or even the complete plant visualisation appears on your mobile device. In this way, you only have to run to the parts of the machine whose measured values you are currently interested in and the relevant data can be displayed without any effort. You can also use the same ProfiSignal 20 project to display the data on your desktop PC.
Suitable measuring and testing devices
Modular measuring, monitoring and automation in one device.
The ProfiMessage D device is a state-of-the-art data logger system that has been specially developed for industrial data acquisition and analysis. It offers a wide range of functions such as the recording and storage of measurement data, monitoring of process parameters and alarms in the event of deviations.
To the product
State-of-the-art processor technology and extreme precision for vibration measurement.
The Expert Vibro device is a powerful vibration analysis device that has been specially developed for monitoring and analyzing machine and system conditions. It enables vibration data to be recorded and evaluated in order to detect potential problems or signs of wear at an early stage.
To the product
Test stand for measurements with potential using an internal data memory.
The LogMessage device is a powerful data logger system designed for the reliable acquisition and recording of measurement data. It offers a variety of analog and digital inputs to connect different sensors and signals. The device records the data with high accuracy and saves it to an internal memory or external storage media.
To the product
Flexible, scalable and expandable solution for seamless data acquisition and monitoring
The Loggito device is a compact data logger system designed for the acquisition and recording of measurement data. It has a variety of analog and digital inputs to connect different sensors and signals. The device records the data with high accuracy and stores it on an internal memory or external storage media such as SD cards.
To the product
Compact and flexible measurement data laboratory with precision measurement technology.
The LoggitoLab device is ideal for use in laboratory environments, research projects, quality control and other applications where precise data acquisition and analysis is required. It offers a reliable and user-friendly solution for monitoring and recording measurement data.
To the product
Precisely record, autonomously store, automatically transmit and evaluate measured values.
The FPGA-based Expert Logger device is particularly powerful and enables the processing of up to 46 analogue input channels, both at low and high sampling rates. Measured values can be precisely recorded, autonomously stored and automatically transferred to the internet or PC via USB, LAN or WLAN and evaluated.
To the product
PC-supported data acquisition and test stand
The Expert Key device is a measuring and control device that can be used in various applications. It enables the acquisition and evaluation of measurement data as well as the control of processes. The device has various interfaces and can be connected to a wide range of sensors and actuators. It is often used in automation technology, mechanical engineering and research.
To the product
Modular system for use as a measuring, control and monitoring device.
The ProfiMessage devices are a modular, expandable and easy-to-use system for measurement data acquisition, monitoring and automation of machines, systems or test benches. ProfiMessage can be used wherever measured values need to be recorded quickly, precisely and electrically isolated, as well as intelligently pre-processed or monitored.
To the product
Intelligent data recorder for synchronous recording of transient and periodic events.
The Expert Transient device enables the recording and evaluation of transient signals over a certain period of time and provides important information for the optimization of processes and systems. The device is characterized by its high accuracy, fast sampling rate and simple operation.
To the product
