Loggito data logger
Maximum data control in the smallest space
Whether in plant monitoring, quality control or decentralized measurement tasks - modern applications require reliable, scalable and easy-to-integrate solutions. This is exactly where the Loggito data logger comes in: With its compact design, universal I/O functionality and industrial-grade components, it offers a flexible platform for seamless data acquisition - directly at the point of use.
Thanks to its modular design and support for current interface standards, Loggito can be quickly integrated into existing systems. The intuitive configuration, integrated pre-processing and visualization with the measurement technology software make the implementation of sophisticated measurement solutions particularly efficient - without any programming effort.
Loggito is more than just a data logger - it is your platform for future-proof measurement technology.
Product highlights
- Decentralised data collection and monitoring of distributed measuring points
- Cost-efficient setup of decentralized measurement networks
- Flexible scalability and modular expansion options
- Universally usable sensor inputs for a wide range of signal types
- Process analysis with customizable channel numbers
- Efficient implementation of small-channel measurement tasks in the laboratory
I/Os and interfaces
The clear display of all inputs and outputs as well as communication interfaces enables efficient system integration and uncomplicated commissioning.
Input signals
- Voltage/Currents
- Thermocouples
- Resistance/RTD
- Digital input
- Frequencies
Output signals
- Digital output
Loggito
Interfaces
- LAN
- USB
Protocols
- Modbus TCP
- OPC UA
- OPC UA HA
Here you will find an overview of the standard and optionally available Hardware interfaces and protocols. Find out more about the interface diversity our measurement technology software.
Loggito combines ease of use, technical precision and future-proofing - for simple and reliable implementation of your measurement tasks. Typical solutions with the Loggito data logger are
- Building monitoring
- Laboratory data acquisition
- Facility monitoring
- Plant and machine monitoring
- Mobile data acquisition
- Low-power applications, e.g. in environmental measurement technology
- Test stands
- Experimental areas in schools and universities
Functions
Functionally versatile - Loggito in industrial use
Loggito combines data acquisition, pre-processing, monitoring and communication in one compact system. With universal I/Os, integrated signal processing, scalable memory and modern interfaces such as OPC UA or Modbus TCP, Loggito is the ideal solution for precise and networked measurement tasks - from the laboratory to decentralized industrial applications.
- Individual system configuration thanks to modular system - The modular Loggito system allows you to customize your measuring system. Combine universal, high-precision sensor inputs with I/O modules in various channel numbers. Digital inputs are also available, which can be used flexibly as frequency or pulse counters. This gives you exactly the functionality you need for your application - without unnecessary channel overhead.
- Simple handling and wiring - The sophisticated hardware architecture with plug-in spring-cage terminals and a clearly structured connection diagram enables fast, safe and convenient wiring. This significantly simplifies commissioning - even for decentralized applications.
- Future-proof communication with OPC UA - With the optional OPC UA server and client interface, Loggito is ideally prepared for modern Industry 4.0 and IoT applications. As a platform-independent standard, OPC UA enables manufacturer-independent and secure data communication - regardless of the hardware or software used. Alternatively or additionally, Modbus TCP as well as LAN and WLAN interfaces are also available.
- Powerful software channels - without any programming - The Loggito logger has integrated software channels with which you can process, calculate, monitor or link your measurement data in real time. Functions such as statistics calculation, limit value and status monitoring or trigger logic can be configured at the click of a mouse - without any programming knowledge. This allows you to create individual measurement logic directly in the device.
- Efficient data storage - internal and external - With an internal memory of 16 GB, which corresponds to approx. 480 million measured values, Loggito offers sufficient capacity for extensive long-term recordings. USB ports and network protocols such as NFS, CIFS or (S)FTP are available for data export and backup. Time stamping is possible down to the millisecond range.
- Mobile access to your measurement data - In combination with the ProfiSignal 20 measurement technology software, you can access live data, process parameters and historical measurement series via dashboards - even on the move using any end device. This allows you to keep an eye on your processes regardless of location.
- Flexible application options - Loggito can be used not only as a stand-alone data logger with internal storage, but also as a PC-supported version (Loggito USB) without its own logging function. This allows the system to be optimally adapted to your infrastructure and requirements.

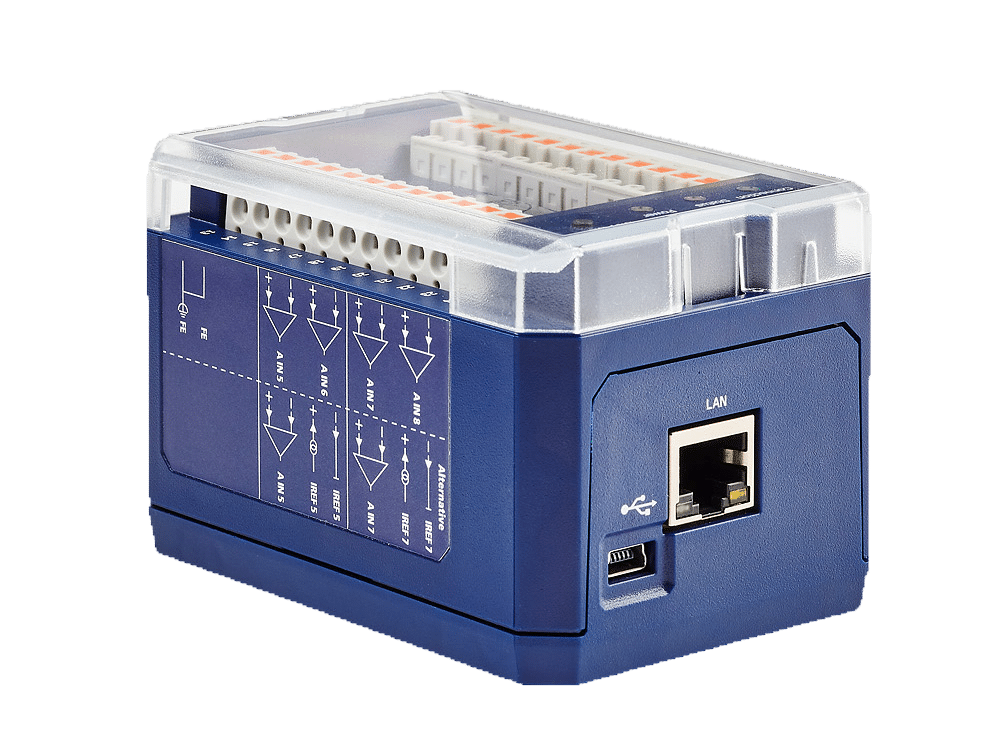

Loggito - Illustration with the removable clamps
Version
The Loggito series - tailor-made solutions for every measuring task
The three versions of the Loggito series offer you maximum flexibility in measurement and control technology. Whether as a compact data logger, a modular I/O unit or a PC-supported USB version - every Loggito device can be seamlessly integrated into networked measurement environments. All measurement data is also available reliably and conveniently on mobile devices.
Loggito Logger
The Loggito logger is equipped with an internal data memory and enables the internal pre-processing and calculation of measurement channels.
Loggito Gate
The Loggito Gate is the ideal solution for logging and recording machine data in measurement networks and for control purposes. With the integrated Ethernet connection and the available standards, it is multifunctional.
Loggito USB
The Loggito USB can be connected directly to a computer. This provides a very cost-effective and flexible measuring solution, e.g. for laboratory measuring stations
| Channel type | 8 AI-RTD | 8 AI | 4 AI-RTD | 4 AI |
|---|---|---|---|---|
| Analog inputs (mV, mA (passive), thermocouples, RTD) | 8 (max. 4 RTD) | 0 | 4 (max. 2 RTD) | 0 |
| Analog inputs (mV, mA (passive), thermocouples) | 0 | 8 | 0 | 4 |
| Digital inputs / outputs (combination) | 2 | 2 | 2 | 2 |
| Number of terminals | 24 | 24 | 16 | 16 |
Here you will find an overview of the standard and optionally available Hardware interfaces and protocols. Find out more about the interface diversity our measurement technology software.
Technical specifications
| Loggito channel variant | 8 AI-RTD | 8AI | 4 AI-RTD | 4AI |
| Analog inputs | 8 | 8 | 4 | 4 |
| Appropriate for RTD's | 4 | 0 | 2 | 0 |
| Sensors | mV, mA, thermocouples, RTD's (no RTD's with channel types 8 AI and 4 AI) | |||
| Total sampling rate | 0.1 Hz .. 500 Hz | |||
| Voltage measurement range | ±78 mV .. ±10 V | |||
| Current measuring range | 0 .. 20 mA / 4 .. 20 mA / ±20 mA / any (with freely selectable external shunts) | |||
| Resistance measurement range | 0 .. 49 kΩ | |||
| Resolution/Type ADC | 24 bit Sigma-Delta | |||
| Input impedance | > 5GΩ | |||
| Dielectric withstand voltage (tolerable overvoltage) | ±24 VDC | |||
| Max. differential voltage channel to channel | ±24 VDC | |||
| Galvanic isolation against FE | ±400 VDC | |||
| Measuring accuracy voltage, current | 0.01% from upper range value | |||
| Measuring accuracy resistance measurement | 0.01% of the measuring range end value (4-wire connection) 0.1% of the measuring range end value (3-wire connection after additional offset determination) | |||
| Measuring accuracy thermocouples* | 0.1 % from measuring range after sensor compensation | |||
| Measuring accuracy Pt 100 (4-wire connection) | Measuring range -260 °C to 147 °C: 0.10 °C Measuring range -260 °C to 596 °C: 0.10 °C Measuring range -260 °C to 849 °C: 0.22 °C | |||
| Measuring accuracy Pt 1000 (4-wire connection) | Measuring range -260 °C to 64 °C: 0.10 °C Measuring range -260 °C to 408 °C: 0.10 °C Measuring range -260 °C to 849 °C: 0.18 °C | |||
* These measuring accuracies apply to positive measuring temperatures (> 0°C). For measurements in the negative temperature range, we recommend calibration at the respective operating point.
| Loggito channel variant | 8 AI-RTD | 8AI | 4 AI-RTD | 4AI |
| Digital / frequency inputs or rather Digital / PWM outputs (switchable) | 2 | 2 | 2 | 2 |
| Input signal | low: 0 .. 1 V / high: 3.6 .. 100 VDC@3.5 mA | |||
| Frequency input measuring range | 0.2 Hz .. 500 Hz | |||
| Counter width | 64 bit | |||
| Max. switching voltage / current | 50 V / 2.5 A for 2 seconds, 250 mA continuous current | |||
| PWM basic frequency / duty cycle | 100 Hz / 1:20 | |||
| Galvanic isolation | ± 400 VDC against FE / other channel groups | |||
| Module type | Loggito Logger / Gate | Loggito USB |
| Interfaces | ||
| LAN | 10BASE-T/100-BASE-TX | - |
| WLAN | 802.11b/g/n, max. 72 MBit/s (optional) | - |
| USB device – mini socket | 2.0 low-/full-/high-speed | 2.0 low-/full-speed |
| USB host – type A socket | 2.0 low-/full-/high-speed | - |
| Protocols | ||
| TCP/IP | Modbus TCP Client (optional) Modbus TCP Server OPC UA Client (optional) OPC UA Server OPC UA HA Server (optional) NTP, SMTP, PTP | - |
| Data storage | ||
| Internal | 16 GB (approx. 30 million measured values per GB) | - |
| External | USB, NFS, CIFS, (S)FTP | - |
| General technical information | ||
| Dimensions | approx. L 95 mm x W 67 mm x H 65 mm | |
| Weight | approx. 220 g | |
| Fixing | Mounting rail DIN EN 60715 or screw mounting horizontally / vertically or upwards | |
| Connecting terminals | Plug-in spring terminals, max. 24 terminals in 2 rows, conductor cross-section (rigid / flexible) 0.2 .. 2.5 mm², ferrule 0.25 .. 1.5 mm² | |
| Temperature range | -20 .. 60° C | |
| Humidity | max. 90 % relative humidity, non-condensing | |
| Supply voltage | 12 .. 24 VDC / ± 10 % | 5 VDC (via mini USB connector) |
| Power input | max. 7.5 Watt | max. 2.5 Watt |
Status: 22.03.2024
Software
Software interfaces
Modern software interfaces make Loggito compatible with common industrial and IoT systems.
Interfaces
- OPC (Server/Client)
- OPC UA (Server/Client)
- OPC UA HA (Server)
- API
- Python
- SQL
- LabView
- Diadem
- Modbus TCP
- DasyLab
DataService / Data Center
Loggito
Suitable software for Loggito
Data acquisition and analysis
Display and monitor measurement data live | Intuitive operation and easy handling without programming knowledge | Versatile diagram and analysis functions for various measurement data | Ready for data acquisition and analysis in just a few minutes
To the product
Operating and monitoring
Reliably record and save measurement data | Clearly display and evaluate measured values | Quickly set up and operate projects without programming effort | Ideal for individual measuring stations up to small measuring systems
To the product
Automate and control
Monitor measurement data and control processes directly | Create automations simply by dragging and dropping | Suitable for complex test benches and automation tasks | Implement and adapt projects without programming knowledge
To the product
Data acquisition and saving
Display and monitor signals and processes in real time | Easy handling with no training required | Access to measurement data from PC, tablet or smartphone | Ready for many measurement and analysis tasks in just a few minutes
To the product
Visualisation and operation
Easily create your own visualizations for measurement data | Conveniently evaluate and log measurement and process data | Intuitive interface for efficient work without programming knowledge | Ideal for individual measuring stations through to complex monitoring solutions
To the product
Central measurement data management
Central storage of operating, maintenance and process data | Cross-site real-time monitoring of machine and process statuses | Modular structure makes it easy to adapt to growing plant and process environments
To the product
Software channels as extended functions
Realise and execute monitoring and automation tasks easily
Our measuring and testing devices have extended functions, which are summarized under the term software channels. The online measurement data is offset against the software channels and then used for visualization, storage or control.
In this way, entire programme sequences can be configured very simply and intuitively with the regulation and control function. These then run autonomously without PC support. This is how you use your data logger effectively, also as a monitoring device or PLC replacement.
The software channels enable functions such as limit value monitoring, integration or online calculation and are configured very easily. This means that even users who are not experts in programming can easily implement their own monitoring tasks or balancing independently in the unit.
